M62429P - Serial Data Control Dual Electronic Volume

Datasheet Summary

Description

The M62429 is a dual channel electronic volume controlled with 2-wire serial data.

The built-in reference circuit can compose of an electronic volume with less external parts.

Features

  • Built-in reference circuit.
  • Control with serial data Volume 0 to.
  • 83 dB (1 dB/step),.
  • ∞ (Independent control is allowed in each channel).
  • Low noise and low distortion VNO = 5 µVrms (ATT =.
  • ∞, JIS-A) THD = 0.01 % Typ. (V0 = 0.5 Vrms, DIN-AUDIO) Recommended Operating Conditions Supply voltage range: VCC = 4.5 to 5.5 V Rated supply voltage: VCC = 5 V System Block Diagram M62429/FP REJ03F0209-0300 Rev.3.00 Jun 15, 2007 2ch IN 1ch IN VOLUME VOL.

📥 Download Datasheet

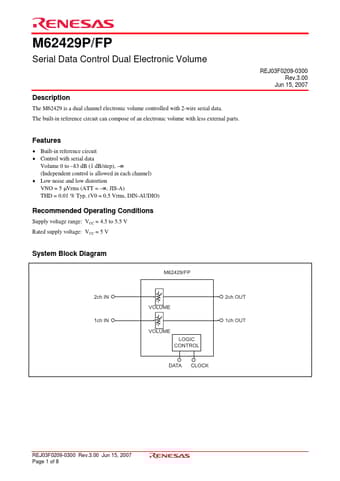

Datasheet preview – M62429P
