M62021L - System Reset-IC

M62021L Description

M62021L/P/FP System Reset IC with Switch for Memory Backup REJ03D0784-0200 Rev.2.00 Jun 15, 2007 .
The M62021 is a system IC that controls the memory backup function of microcomputer (internal RAM).

M62021L Features

* Built-in switch for selection between main power supply and backup power supply to RAM.
* Small difference between input and output voltage (IOUT = 80 mA, VIN = 5 V) 0.2 V Typ
* Detection voltage (power supply monitor voltage) 4.40 V ± 0.2 V
* Chip select signal out

📥 Download Datasheet

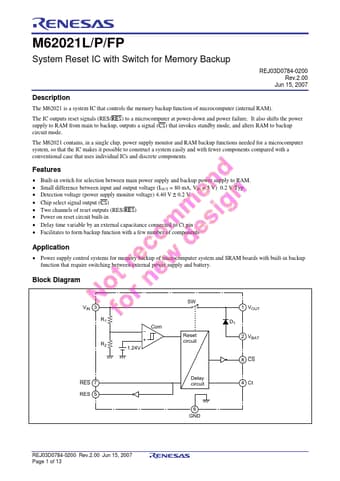

Preview of M62021L PDF
datasheet Preview Page 2 datasheet Preview Page 3
