P9222-RN Wireless Power Receiver

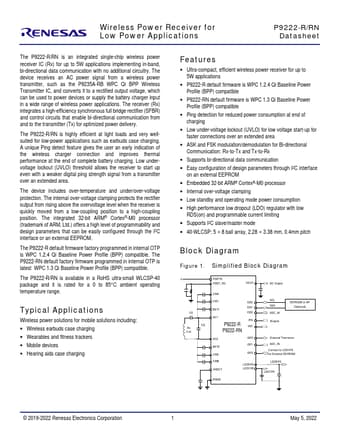

Wireless Power Receiver for Low Power Applications P9222-R/RN Datasheet The P9222-R/RN is an integrated single-chip wireless power receiver IC (Rx) for up to 5W applications implementing in-band, bi-directional data communication with no additional circuitry. The device receives an AC power signal from a wireless power transmitter, such as the P9235A-RB WPC Qi BPP Wireless Transmitter IC, and converts it to a rectified output voltage, which can be used to power devices or supply the battery ch.

P9222-RN Features

* Ultra-compact, efficient wireless power receiver for up to 5W applications

* P9222-R default firmware is WPC 1.2.4 Qi Baseline Power Profile (BPP) compatible

* P9222-RN default firmware is WPC 1.3 Qi Baseline Power Profile (BPP) compatible

* Ping detection for reduced power consump

P9222-RN Datasheet (3.54 MB)
