QLX4600SIQSR Quad Lane Extender

PIN NAME DT IN1[P,N] VDD IN2[P,N] IN3[P,N] IN4[P,N] IS1 IS2 GND PIN NUMBER DESCRIPTION 1 Detection Threshold. Reference DC CURRENT threshold for input signal power detection. Data output OUT[k] is muted when the power of the equalized version of IN[k] falls below the threshold. Tie to ground to.

QLX4600-S30 Quad Lane Extender The QLX4600-S30 is a settable quad receive-side equalizer with extended functionality for advanced protocols operating with line rates up to 6.25Gb/s such as DisplayPort v1.2 (HBR1/2), InfiniBand (SDR and DDR), PCI Express and 10GBase-CX4. The QLX4600-S30 compensates for the frequency dependent attenuation of copper twin-axial cables, extending the signal reach up to 30m on a 24AWG cable. The small form factor, highly-integrated quad design is ideal for high-densit.

QLX4600SIQSR Features

* Supports data rates up to 6.25Gb/s

* Low power (78mW per channel)

* Low latency (

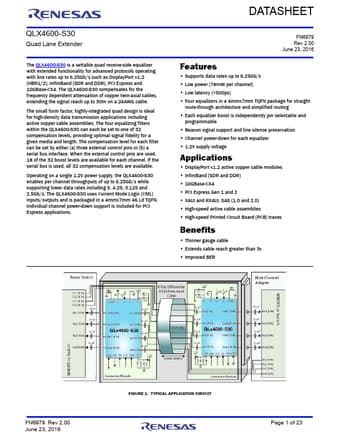

QLX4600SIQSR Datasheet (1.63 MB)
