QLx411GRx Datasheet - Renesas

QLx411GRx Quad Lane Extender

PIN NAME PIN NUMBER DESCRIPTION DT 1 Detection Threshold. Reference DC voltage threshold for input signal power detection. Data output OUT[k] is muted when the power of the equalized version of IN[k] falls below the threshold. Tie to ground to disable electrical idle preservation and always enab.

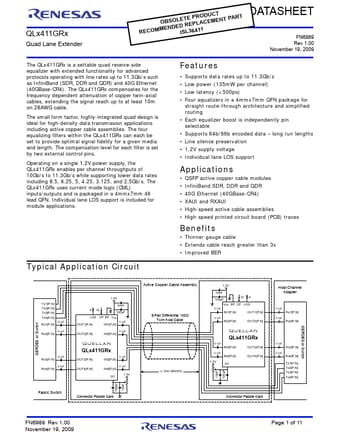

QLx411GRx Quad Lane Extender RECOMMOEBNSDOELDEISTRLE3E6PP4RL1AO1CDEUMCETNT PART DATASHEET FN6989 Rev 1.00 November 19, 2009 The QLx411GRx is a settable quad receive-side equalizer with extended functionality for advanced protocols operating with line rates up to 11.3Gb/s such as InfiniBand (SDR, DDR and QDR) and 40G Ethernet (40GBase-CR4). The QLx411GRx compensates for the frequency dependent attenuation of copper twin-axial cables, extending the signal reach up to at least 10m on 28AWG cable.

QLx411GRx Features

* Supports data rates up to 11.3Gb/s

* Low power (135mW per channel)

* Low latency (

QLx411GRx Datasheet (675.90 KB)
