QLx411RIQ Datasheet, Extender, Renesas

QLx411RIQ Features

• Extender
• Supports data rates up to 11.3Gb/s
• Low power (135mW per channel)
• Low latency (<500ps)
• Four equalizers in a 4mmx7mm QFN package for straight route

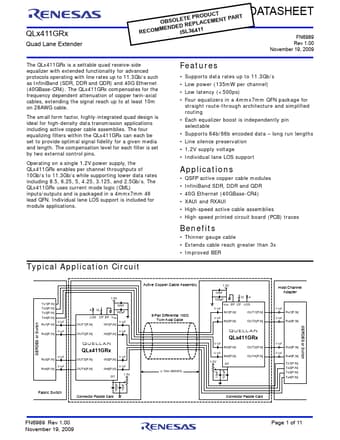

PDF File Details

Part number:

QLx411RIQ

Manufacturer:

Renesas ↗

File Size:

675.90kb

Download:

📄 Datasheet

Description:

Quad lane extender. PIN NAME PIN NUMBER DESCRIPTION DT 1 Detection Threshold. Reference DC voltage threshold for input signal power detection. Data o

QLx411RIQ Application

• Applications including active copper cable assemblies. The four equalizing filters within the QLx411GRx can each be set to provide optimal signal fi
