QLx4600-SL30 Datasheet - Renesas

QLx4600-SL30 - Quad Lane Extender

PIN NAME DT IN1[P, N] VDD IN2[P, N] IN3[P, N] IN4[P, N] LOS1 PIN NUMBER DESCRIPTION 1 Detection Threshold. Reference DC current threshold for input signal power detection. Data output OUT[k] is muted when the power of the equalized version of IN[k] falls below the threshold. Tie to ground to di.
QLx4600-SL30 Quad Lane Extender The QLx4600-SL30 is a settable quad receive-side equalizer with extended functionality for advanced protocols operating with line rates up to 6.25Gb/s such as 4k video capable DisplayPort v1.2 (HBR1/2), InfiniBand (SDR and DDR) and 10GBase-CX4. The QLx4600-SL30 compensates for the frequency dependent attenuation of copper twin-axial cables, extending the signal reach up to 30m on 24AWG cable. The small form factor, highly-integrated quad design is ideal for high-d.

QLx4600-SL30 Features

* Supports data rates up to 6.25Gb/s

* Low power (78mW per channel)

* Low latency (

QLx4600-SL30-Renesas.pdf

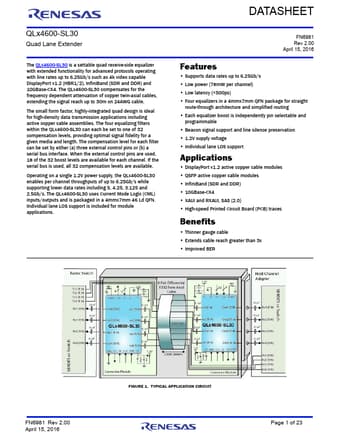

Preview of QLx4600-SL30 PDF
QLx4600-SL30 Datasheet Preview Page 2 QLx4600-SL30 Datasheet Preview Page 3

Datasheet Details

Part number:

QLx4600-SL30

Manufacturer:

Renesas ↗

File Size:

1.95 MB

Description:

Quad lane extender.
