RC19008, RC19024A PCIe Gen5/6 Fanout Buffer

RC190xx PCIe Gen7 Fanout Buffer Family with LOS Datasheet .

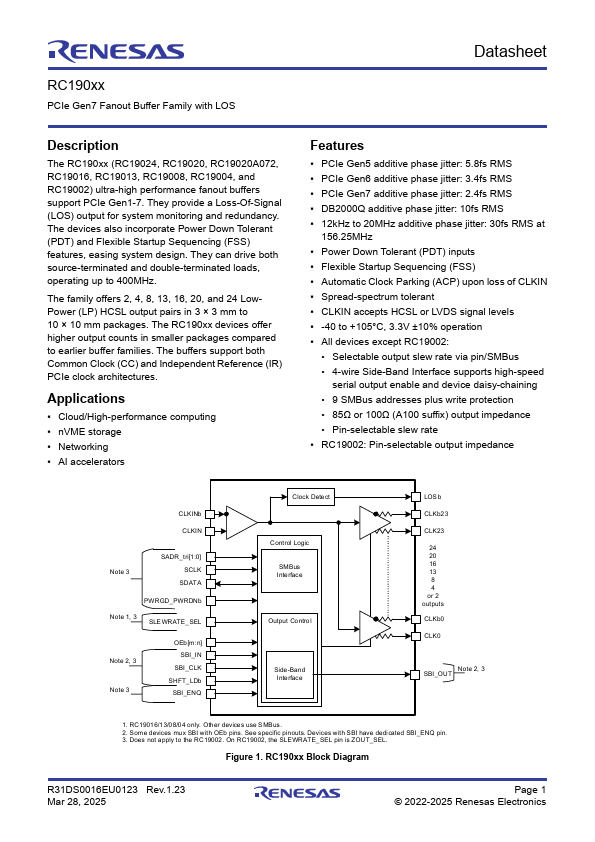

The RC190xx (RC19024, RC19020, RC19020A072, RC19016, RC19013, RC19008, RC19004, and RC19002) ultra-high performance fanout buffers support PCIe Gen1-7.

RC19024A-Renesas.pdf

RC19008 Datasheet Preview — This datasheet PDF includes multiple part numbers: RC19008, RC19024A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RC19008, RC19024A

Manufacturer:

Renesas ↗

File Size:

2.23 MB

Description:

PCIe Gen5/6 Fanout Buffer

Note:

This datasheet PDF includes multiple part numbers: RC19008, RC19024A.
Please refer to the document for exact specifications by model.

Features

* easing system design. They can drive both source-terminated and double-terminated loads, operating up to 400MHz. The family offers 2, 4, 8, 13, 16, 20, and 24 LowPower (LP) HCSL output pairs in 3 × 3 mm to 10 × 10 mm packages. The RC190xx devices offer higher output counts in smaller packages compa
