SLG46585 - GreenPAK Programmable Mixed-Signal Matrix

Product Overview

Renesas

📥 Download Datasheet

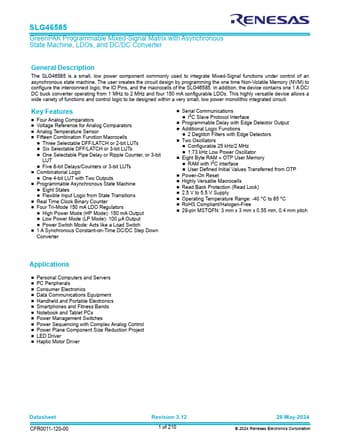

SLG46585 GreenPAK Programmable Mixed-Signal Matrix by Renesas - Datasheet Preview — Datasheet preview – SLG46585

Datasheet Details

Part number	SLG46585
Manufacturer	Renesas
File Size	5.45 MB
Description	GreenPAK Programmable Mixed-Signal Matrix
Datasheet	SLG46585 Datasheet
Additional preview pages of the SLG46585 datasheet.

Product details

Description

The SLG46585 is a small, low power component commonly used to integrate Mixed-Signal functions under control of an asynchronous state machine.

Features

Four Analog Comparators.
Voltage Reference for Analog Comparators.
Analog Temperature Sensor.
Fifteen Combination Function Macrocells.
Three Selectable DFF/LATCH or 2-bit LUTs.
Six Selectable DFF/LATCH or 3-bit LUTs.
One Selectable Pipe Delay or Ripple Counter, or 3-bit LUT.
Five 8-bit Delays/Counters or 3-bit LUTs.
Combinatorial Logic.
One 4-bit LUT with Two Outputs.
Programmable Asynchronous State Machine.
Eight States.
Flexible.
