UPC1470 - MOTOR SPEED REGULATORS

UPC1470 Description

DATA SHEET BIPOLAR ANALOG INTEGRATED CIRCUIT µPC1470 MOTOR SPEED REGULATORS .
The µPC1470 is a monolithic integrated circuit intended as speed regulators for DC motors of record players, tape and cassette recorders etc.

UPC1470 Features

* Excellent versatility in use.
* High Output current.
* Low Quiescent current.
* Low Reference voltage.
* Excellent parameters stability versus temperature.
* Excellent characteristic at low supply voltage. 14.5 MAX. BLOCK DIAGRAM VCC 1 RT MOTOR 24

UPC1470 Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic

📥 Download Datasheet

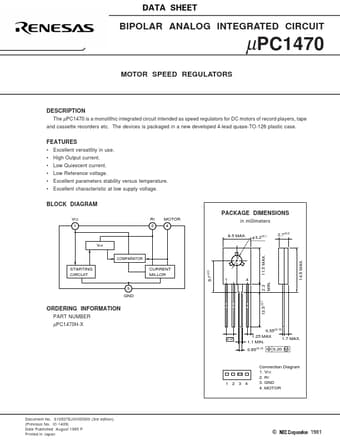

Preview of UPC1470 PDF
datasheet Preview Page 2 datasheet Preview Page 3
