uPC271

High Performance Comparator

Renesas

uPC271 Features

* Input Offset Voltage ±2 mV (TYP.)

* Input Bias Current 100 nA (TYP.)

* Pulse Response Time 200 ns (TYP.)

* Equipped with a Strobe Terminal, ideal for interfacing with logic circuits.

* Two output circuit formats are possible. (open collector, emitter follower)

* La

uPC271 General Description

The µPC271 and µPC311 are high-performance general-purpose comparators that have the same input characteristics as general-purpose operational amplifiers and can directly drive standard logic circuits such as TTL, CMOS, and HNIL. Its power supply voltage range is flexible whereby it exhibits excelle.

uPC271 Datasheet (736.82 KB)

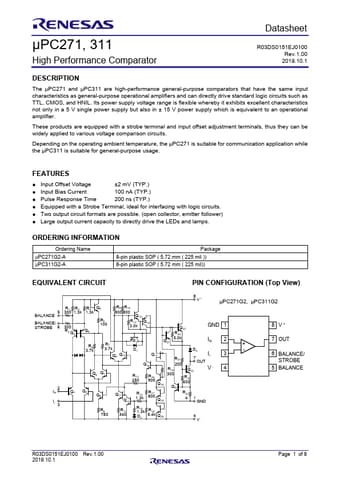

uPC271 Datasheet Preview — Preview of uPC271 PDF

Datasheet Details

Part number:

uPC271

Manufacturer:

Renesas ↗

File Size:

736.82 KB

Description:

High performance comparator.
