UPC2712T - 2.5GHz SILICON MMIC WIDE-BAND AMPLIFIER

This page provides the datasheet information for the UPC2712T, a member of the UPC2709T 2.5GHz SILICON MMIC WIDE-BAND AMPLIFIER family.

Datasheet Summary

Description

NEC's UPC2709T and UPC2712T are Silicon Monolithic integrated circuits manufactured using the NESAT III process.

These devices are suitable as buffer amplifiers for wide-band applications.

Features

  • WIDE.

📥 Download Datasheet

Datasheet preview – UPC2712T

Datasheet Details

Part number UPC2712T
Manufacturer CEL
File Size 651.56 KB
Description 2.5GHz SILICON MMIC WIDE-BAND AMPLIFIER
Datasheet download datasheet UPC2712T Datasheet
Additional preview pages of the UPC2712T datasheet.

📁 Similar Datasheet

  • UPC2712T - 2.6GHz WIDE BAND AMPLIFIER (NEC)
  • uPC271 - High Performance Comparator (Renesas)
  • UPC271 - Precision Voltage Comparators (NEC)
  • UPC2710T - 1.5 GHz SILICON MMIC WIDE-BAND AMPLIFIER (NEC)
  • uPC2710TB - SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER (Renesas)
  • UPC2711T - 2.9GHz WIDE BAND AMPLIFIER (NEC)
  • UPC2713T - 1.5 GHz SILICON MMIC WIDE-BAND AMPLIFIER (NEC)
  • UPC2714T - 1.8GHz LOW POWER CONSUMPTION WIDE-BAND AMPLIFIER (NEC)
  • UPC2715T - 1.2GHz LOW POWER CONSUMPTION WIDE-BAND AMPLIFIER (NEC)
  • UPC2708T - 3 GHz SILICON MMIC WIDE-BAND AMPLIFIER (NEC)
Other Datasheets by CEL
  • UPC2712TB - SILICON MMIC WIDEBAND AMPLIFIER
  • UPC2710TB - SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER
  • UPC2711TB - SILICON MMIC WIDEBAND AMPLIFIER
  • UPC2709T - 2.5GHz SILICON MMIC WIDE-BAND AMPLIFIER
  • UPC2709TB - SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER
  • UPC2721GV - SILICON MMIC L-BAND DOWN CONVERTER
  • UPC2757TB - SUPER MINIMOLD SI MMIC DOWNCONVERTER
  • UPC2758TB - SUPER MINIMOLD SI MMIC DOWNCONVERTER

Full PDF Text Transcription

Click to expand full text

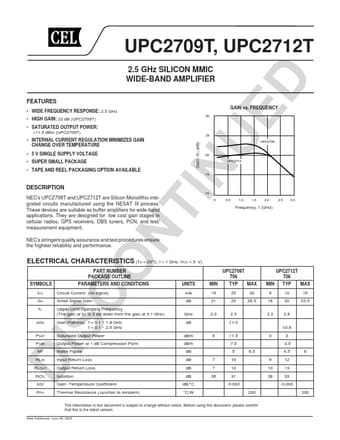

UPC2709T, UPC2712T 2.5 GHz SILICON MMIC WIDE-BAND AMPLIFIER Gain, DISCONTIN GsU (dB) ED FEATURES • WIDE FREQUENCY RESPONSE: 2.5 GHz • HIGH GAIN: 23 dB (UPC2709T) • SATURATED OUTPUT POWER: +11.5 dBm (UPC2709T) • INTERNAL CURRENT REGULATION MINIMIZES GAIN CHANGE OVER TEMPERATURE • 5 V SINGLE SUPPLY VOLTAGE • SUPER SMALL PACKAGE • TAPE AND REEL PACKAGING OPTION AVAILABLE DESCRIPTION NEC's UPC2709T and UPC2712T are Silicon Monolithic integrated circuits manufactured using the NESAT III process. These devices are suitable as buffer amplifiers for wide-band applications. They are designed for low cost gain stages in cellular radios, GPS receivers, DBS tuners, PCN, and test/ measurement equipment.
