UPC271 - Precision Voltage Comparators

Product Overview

NEC

UPC271 Precision Voltage Comparators by NEC - Datasheet Preview — Datasheet preview – UPC271

Datasheet Details

Part number	UPC271
Manufacturer	NEC
File Size	736.82 KB
Description	Precision Voltage Comparators
Datasheet	UPC271 Datasheet

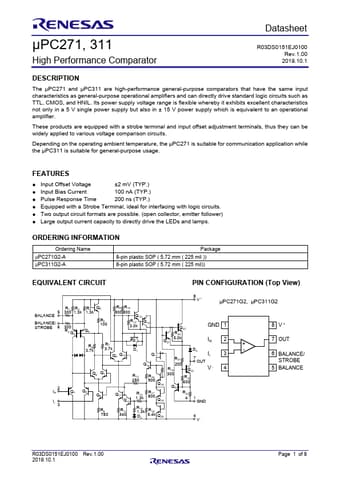

Additional preview pages of the UPC271 datasheet.

Product details

Description

The µPC271 and µPC311 are high-performance general-purpose comparators that have the same input characteristics as general-purpose operational amplifiers and can directly drive standard logic circuits such as TTL, CMOS, and HNIL.

Features

Input Offset Voltage ±2 mV (TYP. ).
Input Bias Current 100 nA (TYP. ).
Pulse Response Time 200 ns (TYP. ).
Equipped with a Strobe Terminal, ideal for interfacing with logic circuits.
Two output circuit formats are possible. (open collector, emitter follower).
Large output current capacity to directly drive the LEDs and lamps.
