UPC2714T - 1.8GHz LOW POWER CONSUMPTION WIDE-BAND AMPLIFIER

UPC2714T Description

DATA SHEET BIPOLAR ANALOG INTEGRATED CIRCUIT µ PC2714T 1.8 GHz LOW POWER CONSUMPTION WIDE BAND AMPLIFIER SILICON BIPOLAR MONOLITHIC INTEGRATED CIRC.

UPC2714T Features

* Low power consumption
* High power gain
* Input and output matching
* Super small package : 15 mW (VCC = 3.4 V, ICC = 4.5 mA) TYP. : 11.5 dB TYP. @ f = 0.5 GHz : 50 Ω : 6 pin mini mold
* Excellent frequency response : 1.8 GHz TYP. @ 3 dB down below the gain

📥 Download Datasheet

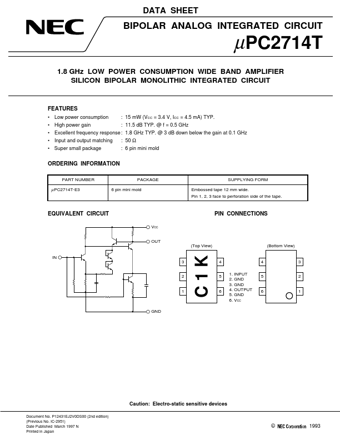

Preview of UPC2714T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPC2714T
Manufacturer
NEC
File Size
186.36 KB
Datasheet
UPC2714T_NEC.pdf
Description
1.8GHz LOW POWER CONSUMPTION WIDE-BAND AMPLIFIER
