UPC2712TB

SILICON MMIC WIDEBAND AMPLIFIER

UPC2712TB Features

* HIGH DENSITY SURFACE MOUNTING: 6 pin super minimold or SOT- 363 package

* SUPPLY VOLTAGE: VCC = 4.5 to 5.5 V

* WIDEBAND RESPONSE: UPC2711TB: fu = 2.9 GHz TYP UPC2712TB: fu = 2.6 GHz TYP

* POWER GAIN: UPC2711TB: GP = 13 dB TYP UPC2712TB: GP = 20 dB TYP DESCRIPTION Th

UPC2712TB General Description

The UPC2711TB and UPC2712TB are Silicon MMIC Wideband Amplifiers manufactured using NEC's 20 GHz fT NESATTM III silicon bipolar process. These devices are designed for use as buffer amps in DBS tuners. The UPC2711/ 12TB are pin compatible and have comparable performance as the larger UPC2711/12T, so.

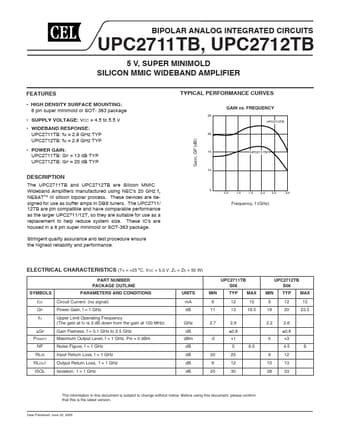

UPC2712TB Datasheet (627.75 KB)

Preview of UPC2712TB PDF

Datasheet Details

Part number:

UPC2712TB

Manufacturer:

CEL

File Size:

627.75 KB

Description:

Silicon mmic wideband amplifier.
