UPC2711TB - SILICON MMIC WIDEBAND AMPLIFIER

Datasheet Summary

Description

The UPC2711TB and UPC2712TB are Silicon MMIC Wideband Amplifiers manufactured using NEC's 20 GHz fT NESATTM III silicon bipolar process.

These devices are designed for use as buffer amps in DBS tuners.

Features

  • HIGH.

📥 Download Datasheet

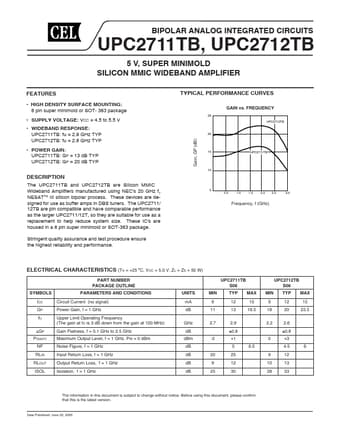

Datasheet preview – UPC2711TB

Datasheet Details

Part number UPC2711TB
Manufacturer CEL
File Size 627.75 KB
Description SILICON MMIC WIDEBAND AMPLIFIER
Datasheet download datasheet UPC2711TB Datasheet
Additional preview pages of the UPC2711TB datasheet.

📁 Similar Datasheet

  • UPC2711T - 2.9GHz WIDE BAND AMPLIFIER (NEC)
  • uPC271 - High Performance Comparator (Renesas)
  • UPC271 - Precision Voltage Comparators (NEC)
  • UPC2710T - 1.5 GHz SILICON MMIC WIDE-BAND AMPLIFIER (NEC)
  • uPC2710TB - SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER (Renesas)
  • UPC2712T - 2.6GHz WIDE BAND AMPLIFIER (NEC)
  • UPC2713T - 1.5 GHz SILICON MMIC WIDE-BAND AMPLIFIER (NEC)
  • UPC2714T - 1.8GHz LOW POWER CONSUMPTION WIDE-BAND AMPLIFIER (NEC)
  • UPC2715T - 1.2GHz LOW POWER CONSUMPTION WIDE-BAND AMPLIFIER (NEC)
  • UPC2708T - 3 GHz SILICON MMIC WIDE-BAND AMPLIFIER (NEC)
Other Datasheets by CEL
  • UPC2710TB - SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER
  • UPC2712T - 2.5GHz SILICON MMIC WIDE-BAND AMPLIFIER
  • UPC2712TB - SILICON MMIC WIDEBAND AMPLIFIER
  • UPC2709T - 2.5GHz SILICON MMIC WIDE-BAND AMPLIFIER
  • UPC2709TB - SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER
  • UPC2721GV - SILICON MMIC L-BAND DOWN CONVERTER
  • UPC2757TB - SUPER MINIMOLD SI MMIC DOWNCONVERTER
  • UPC2758TB - SUPER MINIMOLD SI MMIC DOWNCONVERTER

Full PDF Text Transcription

Click to expand full text
BIPOLAR ANALOG INTEGRATED CIRCUITS UPC2711TB, UPC2712TB 5 V, SUPER MINIMOLD SILICON MMIC WIDEBAND AMPLIFIER FEATURES • HIGH DENSITY SURFACE MOUNTING: 6 pin super minimold or SOT- 363 package • SUPPLY VOLTAGE: VCC = 4.5 to 5.5 V • WIDEBAND RESPONSE: UPC2711TB: fu = 2.9 GHz TYP UPC2712TB: fu = 2.6 GHz TYP • POWER GAIN: UPC2711TB: GP = 13 dB TYP UPC2712TB: GP = 20 dB TYP DESCRIPTION The UPC2711TB and UPC2712TB are Silicon MMIC Wideband Amplifiers manufactured using NEC's 20 GHz fT NESATTM III silicon bipolar process. These devices are designed for use as buffer amps in DBS tuners. The UPC2711/ 12TB are pin compatible and have comparable performance as the larger UPC2711/12T, so they are suitable for use as a replacement to help reduce system size.
