RT8800A

General Purpose 3-Phase PWM Controller

Richtek Technology

RT8800A Features

* include overvoltage protection, undervoltage protection and internal softstart. The RT8800A comes to a VQFN-16L 3x3 package. Features z z 5V Power Supply Voltage 2/3-Phase Power Conversion with Automatic Phase Selection Output Voltage Controlled by External Reference Voltage Precise Core Voltage R

RT8800A General Description

The RT8800A is a general-purposed multi-phase synchronous buck controller dedicating for high power density applications. The RT8800A operates with 2 or 3 synchronous buck switching stages in interleaved phase set automatically. The multiphase architecture provides high output current while maintain.

RT8800A Datasheet (528.56 KB)

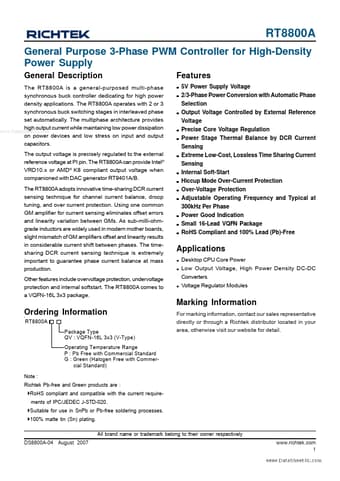

RT8800A Datasheet Preview — Preview of RT8800A PDF

Datasheet Details

Part number:

RT8800A

Manufacturer:

Richtek Technology

File Size:

528.56 KB

Description:

General purpose 3-phase pwm controller.
