RT8802A

2/3/4/5-Phase PWM Controller

RT8802A Features

* include over current protection, programmable soft start, over voltage protection, and output offset setting. RT8802A comes to a small footprint package with VQFN-40L 6x6. Features z z 5V Power Supply 2/3/4/5-Phase Power Conversion with Automatic Phase Selection 8-bit VID Interface, Supporting Int

RT8802A General Description

The RT8802A is a 2/3/4/5-phase synchronous buck controller specifically designed to power Intel®/ AMD next generation microprocessors. It implements an internal 8-bit DAC that is identified by VID code of microprocessor directly. RT8802A generates VID table that conform to Intel® VRD10.x and VRD11 c.

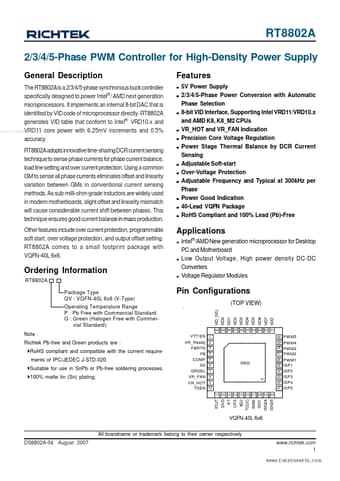

RT8802A Datasheet (588.54 KB)

Preview of RT8802A PDF

Datasheet Details

Part number:

RT8802A

Manufacturer:

Richtek Technology

File Size:

588.54 KB

Description:

2/3/4/5-phase pwm controller.
