RT1711P, USB PD Port and Power Controller

® RT1711P USB PD Port and Power Controller General .
The RT1711P is a USB Type-C and Power Delivery (PD) controller, which complies with the latest USB Type-C and PD standards.

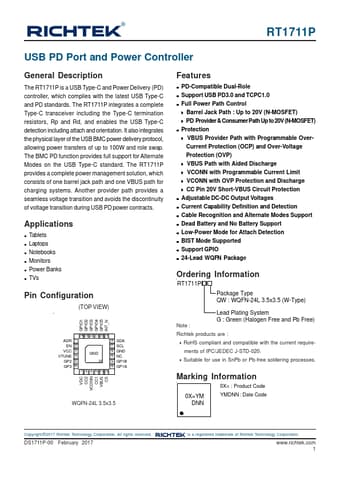

datasheet Preview Page 1 from Datasheet4u.com

RT1711P-Richtek.pdf

RT1711P Datasheet Preview — Preview of RT1711P PDF

Datasheet Details

Part number:

RT1711P

Manufacturer:

Richtek

File Size:

467.16 KB

Description:

USB PD Port and Power Controller

Features

* PD-Compatible Dual-Role
* Support USB PD3.0 and TCPC1.0
* Full Power Path Control Barrel Jack Path : Up to 20V (N-MOSFET) PD Provider & Consumer Path Up to 20V (N-MOSFET)
* Protection VBUS Provider Path with Programmable OverCurrent Protection (OCP) and Over-Voltage Protect

Applications

* Tablets
* Laptops
* Notebooks
* Monitors
* Power Banks
* TVs Pin Configuration (TOP VIEW) GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 INT_N 24 23 22 21 20 19 ADR 1 18 SDA EN 2 17 SCL VCC 3 VTUNE 4 GND 16 GND 15 NC GP2 5 25 14 GP1B GP3 6 13 GP1A 7 8 9 10 11 12 VDC CC2 VCONN
