RT1720 Datasheet - Richtek

60V Hot Swap Controller

RT1720 Features

* include, open-drain fault and power-good outputs, and a shutdown input. The RT1720 is available in the MSOP-10 package. Features

* Wide Input Operation Range : 5V to 80V

* Negative Input Voltage Rating to

* 60V

* Adjustable Output Clamp Voltage

* Adjustable Over-Current Protec

RT1720 General Description

The RT1720 is an over-voltage and over-current protection circuit. It monitors a circuit’s input voltage and current with its adjustable over-voltage and over-current thresholds and drives an external N-MOSFET switch to connect the input to the output voltage only when it is safe. Its wide input vol.

RT1720 Datasheet (1.02 MB)

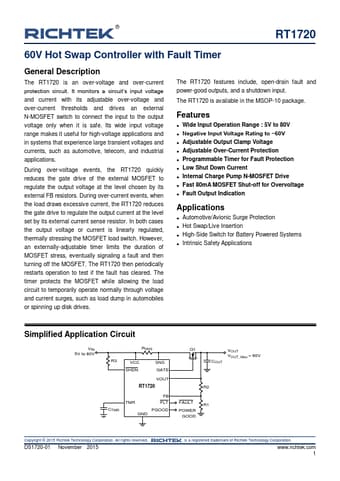

RT1720 Datasheet Preview — Preview of RT1720 PDF

Datasheet Details

Part number:

RT1720

Manufacturer:

Richtek

File Size:

1.02 MB

Description:

60v hot swap controller.
