RT1715

Programmable USB Type-C PD Controller

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Richtek Technology Corp RT1715WSC IC 1 PORT LITE PD CTRLR 9WLCSP DigiKey 944 1000 units
$0.6

RT1715 Datasheet (1.30 MB)

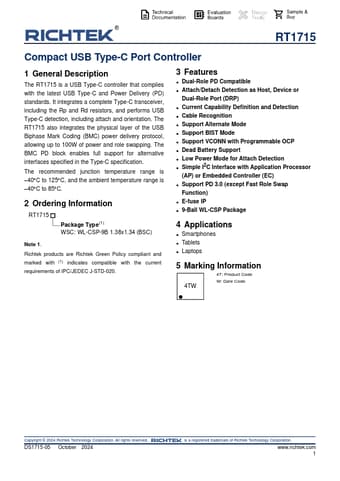

Preview of RT1715 PDF Datasheet

Datasheet Details

Part number:

RT1715

Manufacturer:

Richtek

File Size:

1.30 MB

Description:

Programmable usb type-c pd controller

RT1715 Features

* Dual-Role PD Compatible

* Attach/Detach Detection as Host, Device or Dual-Role Port (DRP)

* Current Capability Definition and Detection

* Cable Recognition

* Support Alternate Mode

* Support BIST Mode

* Support VCONN with Programmable OCP

* Dead Battery Support

RT1715 General Description

The RT1715 is a USB Type-C controller that complies with the latest USB Type-C and Power Delivery (PD) standards. It integrates a complete Type-C transceiver, including the Rp and Rd resistors, and performs USB Type-C detection, including attach and orientation. The RT1715 also integrates the physic.
