RT6300A

Complete LPDDR5/5X Memory Power Solution

RT6300A Features

* Wide Input Supply Range: 4.5V to 23V for HV Buck Converter

* Four High-Efficiency Output Regulators:

* VDD1 (Load Switch): 1.8V/1A

* VDD2H (HV Buck Converter): 1.065V/8A

* VDD2L (LDO): 0.92V/1.5A

* VDDQ (LV Buck Converter): 0.32V/3A or 0.52V/3A (Selectable by VSEL Pin)

RT6300A General Description

The RT6300A is an integrated power management IC solution for LPDDR5 and LPDDR5X memory. This device provides two single buck voltage regulators VDD2H (1.065V/8A) and VDDQ (0.52V or 0.32V/3A), one LDO VDD2L (0.92V/1.5A), and one load switch VDD1 (1.8V/1A). The RT6300A supports VDD2L and 1bit VID to .

RT6300A Datasheet (1.83 MB)

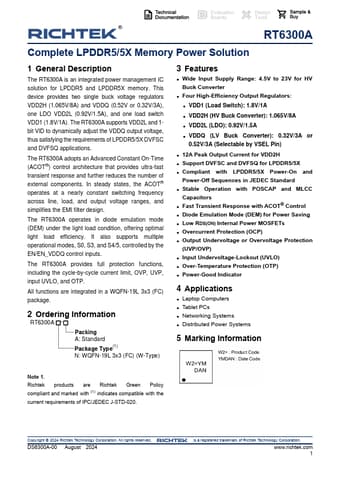

Preview of RT6300A PDF

Datasheet Details

Part number:

RT6300A

Manufacturer:

Richtek

File Size:

1.83 MB

Description:

Complete lpddr5/5x memory power solution.
