RT6301A

Complete LPDDR5/5X Memory Power Solution

RT6301A Features

* Wide Input Supply Range: 4.5V to 23V for HV Buck Converter

* Three High-Efficiency Output Regulators:

* VDD1 (Load Switch): 1.8V/1A

* VDD2 (HV Buck Converter): 1.065V/8A

* VDDQ (LV Buck Converter): 0.32V/3A or 0.52V/3A (Selectable by VSEL Pin)

* 12A Peak Output Current for

RT6301A General Description

The RT6301A is an integrated power management IC solution for LPDDR5 and LPDDR5X memory. This device provides two single buck voltage regulators VDD2 (1.065V/8A) and VDDQ (0.52V/3A), and one load switch VDD1 (1.8V/1A). The RT6301A adopts an Advanced Constant On-Time (ACOT® ) control architecture tha.

RT6301A Datasheet (1.68 MB)

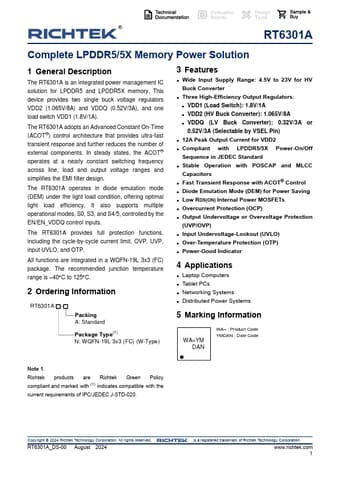

Preview of RT6301A PDF

Datasheet Details

Part number:

RT6301A

Manufacturer:

Richtek

File Size:

1.68 MB

Description:

Complete lpddr5/5x memory power solution.
