RT6316B

23V Synchronous Step-Down Converter

RT6316B Features

* 4.5V to 23V (RT6316B) and 5.1V to 23V (RT6316C) Input Voltage Range 6A Output Current

* ACOT® Mode Performs Fast Transient Response

* ACOT® Architecture to Enable All MLCC Output Capacitor Usage

* Fixed 750kHz (RT6316C) and 500kHz (RT6316B) Switching Frequency

* High Efficient

RT6316B General Description

The RT6316B/C is an advanced constant on-time (ACOT®) mode synchronous buck converter. The main control loop of the RT6316B/C using an advanced constant on-time (ACOT®) mode control which provides a very fast transient response. The RT6316B operates from 4.5V to 23V input voltage and RT6316C operate.

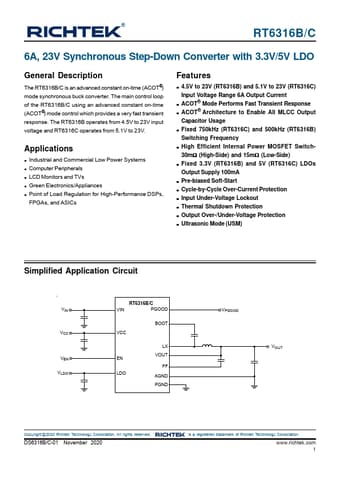

RT6316B Datasheet (399.87 KB)

Preview of RT6316B PDF

Datasheet Details

Part number:

RT6316B

Manufacturer:

Richtek

File Size:

399.87 KB

Description:

23v synchronous step-down converter.
