RT6585A - Dual-Channel Synchronous DC/DC Step-Down Controller

Richtek

📥 Download Datasheet

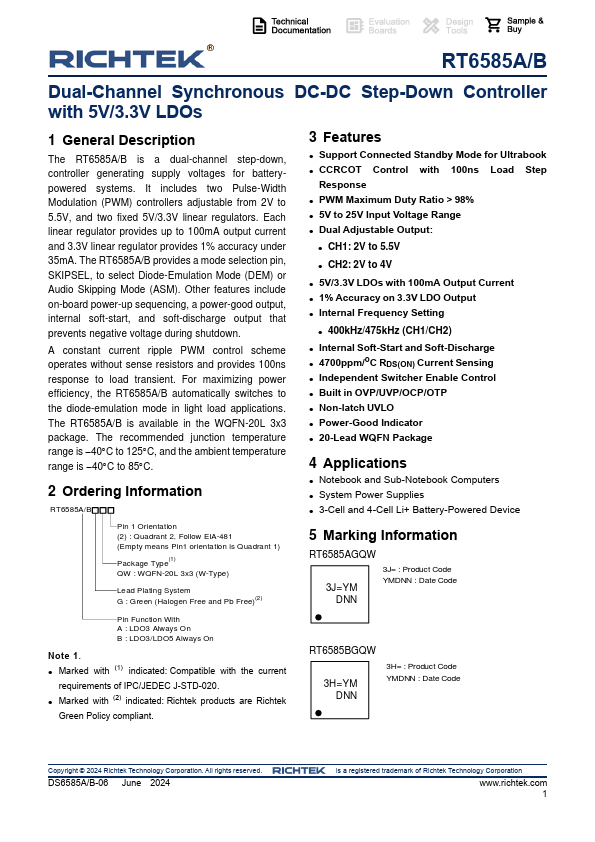

RT6585A Datasheet Preview — Preview of RT6585A PDF

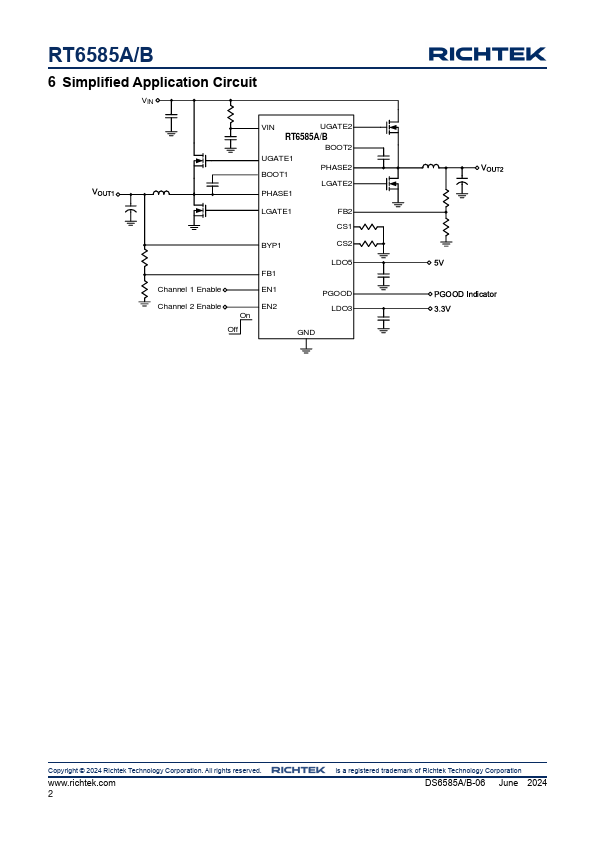

datasheet Preview Page 2

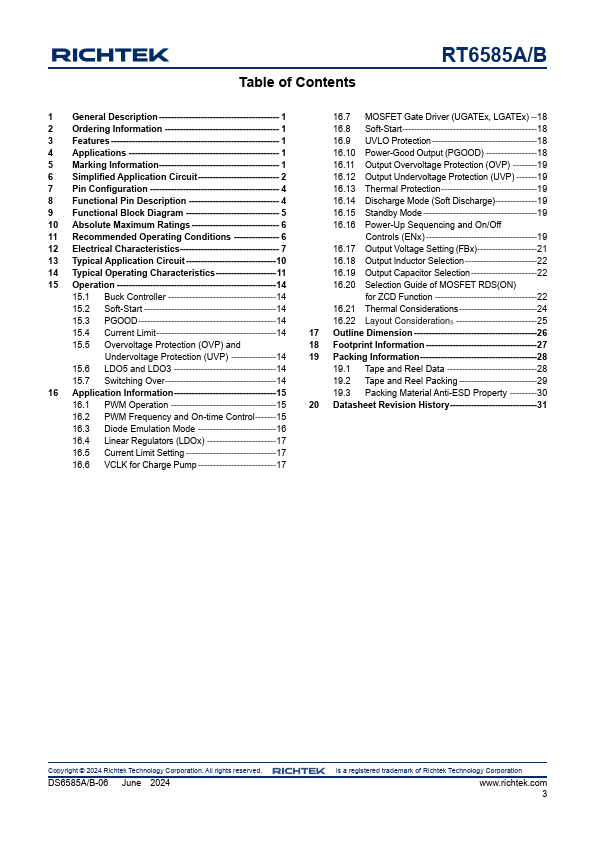

datasheet Preview Page 3

Datasheet Details

Part number: RT6585A
Manufacturer: Richtek
File Size: 1.43 MB
Datasheet: RT6585A-Richtek.pdf
Description: Dual-Channel Synchronous DC/DC Step-Down Controller

RT6585A Product details

Description

The RT6585A/B is a dual-channel step-down, controller generating supply voltages for batterypowered systems..

Features

include on-board power-up sequencing, a power-good output, internal soft-start, and soft-discharge output that prevents negative voltage during shutdown. A constant current ripple PWM control scheme operates without sense resistors and provides 100ns response to load transient. For maximizing power efficiency, the RT6585A/B automatically switches to the diode-emulation mode in light load.
