RT6585C - Dual-Channel Synchronous DC-DC Step-Down Controller

Richtek

📥 Download Datasheet

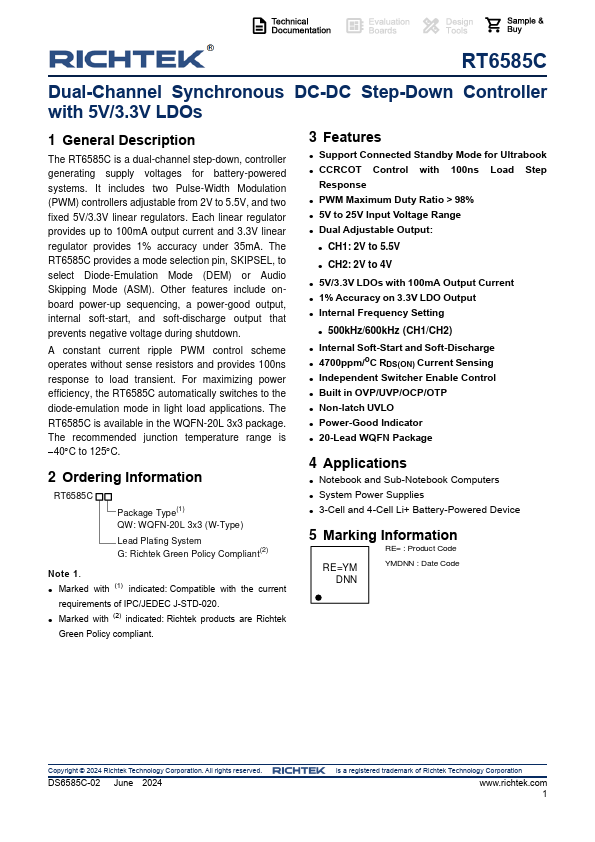

RT6585C Datasheet Preview — Preview of RT6585C PDF

datasheet Preview Page 2

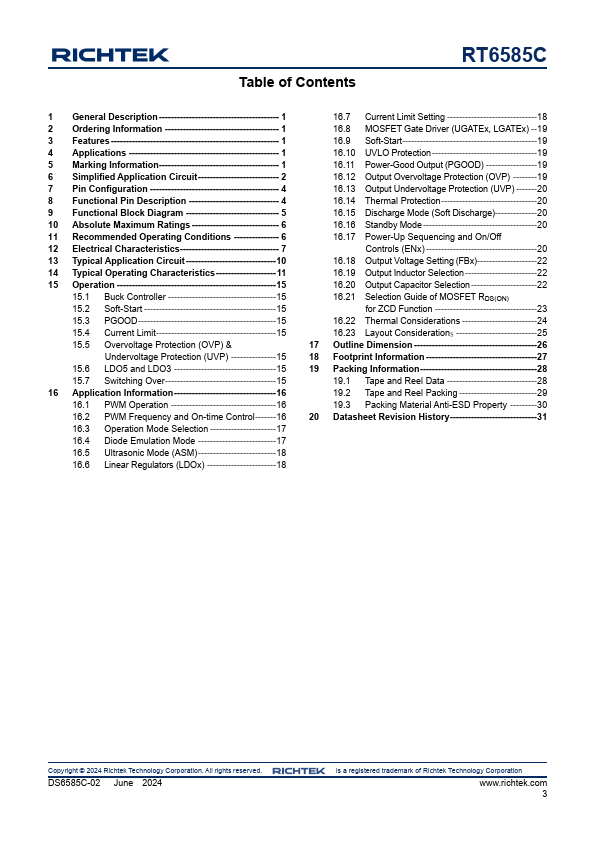

datasheet Preview Page 3

Datasheet Details

Part number: RT6585C
Manufacturer: Richtek
File Size: 1.51 MB
Datasheet: RT6585C-Richtek.pdf
Description: Dual-Channel Synchronous DC-DC Step-Down Controller

RT6585C Product details

Description

The RT6585C is a dual-channel step-down, controller generating supply voltages for battery-powered systems..

Features

include onboard power-up sequencing, a power-good output, internal soft-start, and soft-discharge output that prevents negative voltage during shutdown. A constant current ripple PWM control scheme operates without sense resistors and provides 100ns response to load transient. For maximizing power efficiency, the RT6585C automatically switches to the diode-emulation mode in light load.
