RT8271 - 1.2MHz Step-Down Converter

Richtek

📥 Download Datasheet

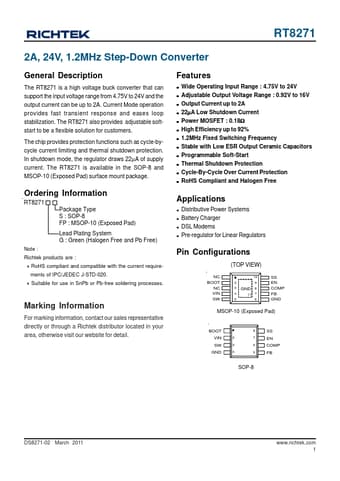

RT8271 Datasheet Preview — Preview of RT8271 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RT8271
Manufacturer	Richtek ↗
File Size	281.89 KB
Description	1.2MHz Step-Down Converter
Datasheet	RT8271_Richtek.pdf

RT8271 Product details

Description

The RT8271 is a high voltage buck converter that can support the input voltage range from 4.75V to 24V and the output current can be up to 2A.

Features

z z z z z z z z z z z z Wide Operating Input Range : 4.75V to 24V Adjustable Output Voltage Range : 0.92V to 16V Output Current up to 2A 22μA Low Shutdown Current Power MOSFET : 0.18Ω High Efficiency up to 92% 1.2MHz Fixed Switching Frequency Stable with Low ESR Output Ceramic Capacitors Programmable Soft-Start Thermal Shutdown Protection Cycle-By-Cycle Over Current Protection RoHS Compliant and Halogen Free Ordering Information RT8271 Package Type S : SOP-8 FP : MSOP-10 (Exposed Pad) Lead Pla.
