RT8278 Datasheet, Converter, Richtek

RT8278 Features

  • Converter Wide Operating Input Range : 4.5V to 24V Adjustable Output Voltage Range : 0.8V to 15V Output Current up to 2A 25μA Low Shutdown Current High Efficiency up to 90% at 2.2MHz Programmable

PDF File Details

Part number:

RT8278

Manufacturer:

Richtek

File Size:

304.03kb

Download:

📄 Datasheet

Description:

3mhz step-down converter. The RT8278 is a high voltage buck converter that can support an input voltage range from 4.5V to 24V with output current up to 2A. Cu

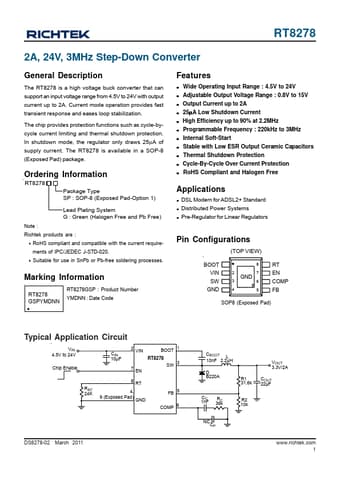

Datasheet Preview: RT8278 📥 Download PDF (304.03kb)
Page 2 of RT8278 Page 3 of RT8278

RT8278 Application

  • Applications DSL Modem for ADSL2+ Standard Distributed Power Systems Pre-Regulator for Linear Regulators RoHS compliant and compatible with the cur
