RT8272 - 1.2MHz Step-Down Converter

Richtek

📥 Download Datasheet

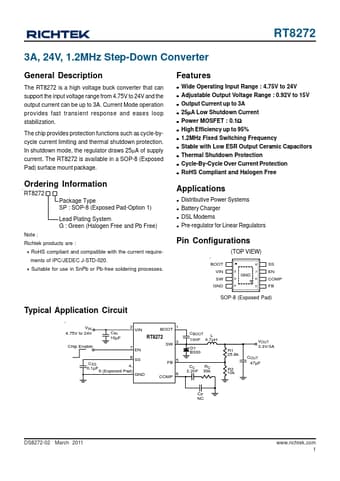

RT8272 Datasheet Preview — Preview of RT8272 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RT8272
Manufacturer	Richtek ↗
File Size	250.62 KB
Description	1.2MHz Step-Down Converter
Datasheet	RT8272_Richtek.pdf

RT8272 Product details

Description

The RT8272 is a high voltage buck converter that can support the input voltage range from 4.75V to 24V and the output current can be up to 3A.

Features

z z z z z z z z z z z Wide Operating Input Range : 4.75V to 24V Adjustable Output Voltage Range : 0.92V to 15V Output Current up to 3A 25μA Low Shutdown Current Power MOSFET : 0.1Ω High Efficiency up to 95% 1.2MHz Fixed Switching Frequency Stable with Low ESR Output Ceramic Capacitors Thermal Shutdown Protection Cycle-By-Cycle Over Current Protection RoHS Compliant and Halogen Free Ordering Information RT8272 Package Type SP : SOP-8 (Exposed Pad-Option 1) Lead Plating System G : Green (Halogen.
