RT8532 - 6-String 43V White LED Driver

RT8532 Description

® RT8532 6-String 43V White LED Driver with Boost Regulator General .
The RT8532 is a high efficiency white LED driver.

RT8532 Features

* Wide Input Voltage : VIN 2.5V to 24V
* High Output Voltage : VOUT up to 43V
* Programmable Full Channel Current from 5mA to 50mA and Matched to 2%
* Channel Current Regulation with ±3% Accuracy
* Dimming Controls  Direct PWM Dimming up to 20kHz and Minimum On-Time to 500ns  P

RT8532 Applications

* UMPC and Notebook Computer Backlight Simplified Application Circuit L1 D1 VIN Chip Enable CIN LX VIN EN RT8532 OVP PWM Signal MIX CC RCOMP CCOMP RISET RFSW PWM MIX COMP LED1 LED2 LED3 LED4 LED5 ISET LED6 FREQ AGND PGND COUT VOUT ROVP2 ROVP1 :::::: :::::: COVP : : : :

📥 Download Datasheet

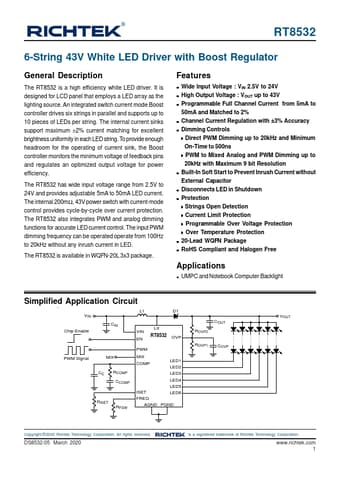

Preview of RT8532 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RT8532
Manufacturer
Richtek
File Size
268.06 KB
Datasheet
RT8532-Richtek.pdf
Description
6-String 43V White LED Driver
