RT8509A - Step-Up DC/DC Converter

RT8509A Description

® RT8509A 4.5A Step-Up DC/DC Converter General .
The RT8509A is a high performance switching Boost converter that provides a regulated supply voltage for active matrix thin film transistor (TFT) liqu.

RT8509A Features

* include adjustable soft-start, over-voltage protection, and over-temperature protection. The RT8509A is available in the WDFN-12L 5x5 package. Marking Information RT8509A GQW YMDNN RT8509AGQW : Product Number YMDNN : Date Code Features
* 90% Efficiency
* Adjustable Output Up to 24V

RT8509A Applications

* GIP TFT-LCD Panels Ordering Information RT8509A Package Type QW : WDFN-12L 5x5 (W-Type) Note : Lead Plating System G : Green (Halogen Free and Pb Free) Richtek products are :  RoHS compliant and compatible with the current require- ments of IPC/JEDEC J-STD-020.  Suitable for use in Sn

📥 Download Datasheet

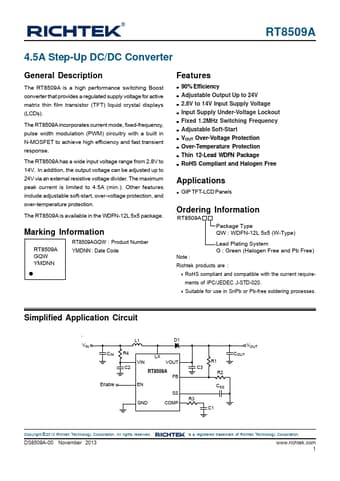

Preview of RT8509A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RT8509A
Manufacturer
Richtek
File Size
192.48 KB
Datasheet
RT8509A-Richtek.pdf
Description
Step-Up DC/DC Converter
