RT8511A - 43V Asynchronous Boost WLED Driver

RT8511A Description

® RT8511A 43V Asynchronous Boost WLED Driver General .
The RT8511A is an LED driver IC that can support up to 10 WLED in series.

RT8511A Features

* Wide Input Voltage Range : 2.7V to 24V
* High Output Voltage : up to 43V
* Direct PWM Dimming Control and Frequency from 100Hz to 1kHz
* Internal Soft -Start and Compensation
* 200mV Reference Voltage
* PWM Dimming with Internal Filter
* Programmable Over Voltage Protec

RT8511A Applications

* UMPC and Notebook Computer Backlight
* GPS, Portable DVD Backlight Pin Configurations (TOP VIEW) OVP 1 FB 2 DIMC 3 GND 4 GND 8 EN 7 PWM 6 VIN 9 5 LX WDFN-8L 2x2 / WDFN-8L 3x3 Marking Information RT8511AGQW 14W 14 : Product Code W : Date Code RT8511AGQWA 22=YM DNN 22= : Product Co

📥 Download Datasheet

Preview of RT8511A PDF

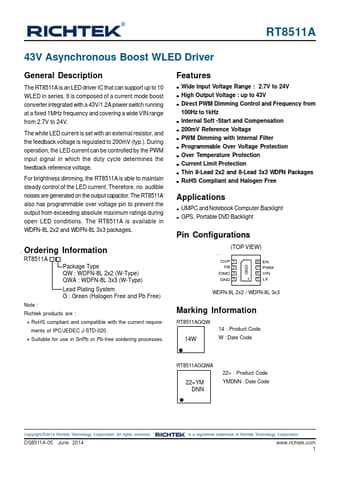

datasheet Preview Page 2 datasheet Preview Page 3
