RT8511B - 43V Asynchronous Boost WLED Driver

RT8511B Description

® RT8511B 43V Asynchronous Boost WLED Driver General .
The RT8511B is an LED driver IC that can support up to 10 WLED in series.

RT8511B Features

* Wide Input Voltage Range : 2.7V to 24V
* High Output Voltage : up to 43V
* Direct PWM Dimming Control and Frequency from 100Hz to 8kHz
* Internal Soft-Start and Compensation
* 200mV Reference Voltage
* PWM Dimming with Internal Filter
* Programmable Over Voltage Protect

RT8511B Applications

* UMPC and Notebook Computer Backlight
* GPS, Portable DVD Backlight Pin Configurations (TOP VIEW) OVP 1 FB 2 DIMC 3 GND 4 GND 8 EN 7 PWM 6 VIN 9 5 LX WDFN-8L 2x2 Marking Information 0F : Product Code 0FW W : Date Code Copyright ©2015 Richtek Technology Corporation. All rights rese

📥 Download Datasheet

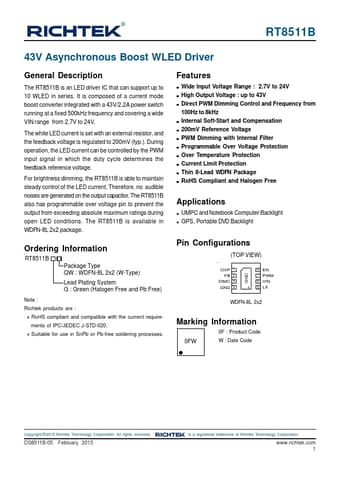

Preview of RT8511B PDF
