RT8576 Datasheet, driver equivalent, Richtek

RT8576 Features

• Driver z Wide Input Supply Voltage Range : 9V to 28V z Adjustable Boost Controller Switching Frequency from 100kHz to 1MHz z Programmable Channel Current z Channel Current Matching : ±3% z Ext

PDF File Details

Part number:

RT8576

Manufacturer:

Richtek

File Size:

205.22kb

Download:

📄 Datasheet

Description:

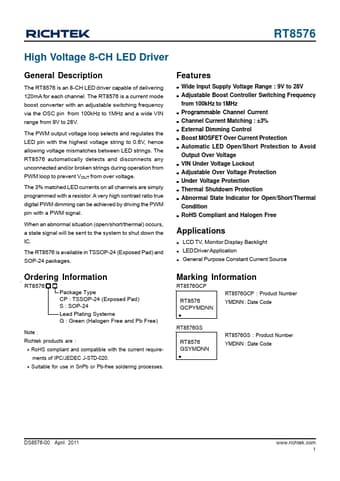

High voltage 8-ch led driver. The RT8576 is an 8-CH LED driver capable of delivering 120mA for each channel. The RT8576 is a current mode boost converter with an a

RT8576 Application

• Applications z LCD TV, Monitor Display Backlight z LEDDriver Application z General Purpose Constant Current Source Marking Information RT8576GCP
