RT8572

High Voltage 8-CH LED Driver

RT8572 Features

* z Wide Input Supply Voltage Range : 9V to 28V z Adjustable Boost Controller Switching Frequency from 100kHz to 1MHz z Programmable Channel Current z Channel Current Matching : ±1.5% z External Dimming Control z Boost MOSFET Over Current Protection z Automatic LED Open/Short Protection to Avoid Outpu

RT8572 General Description

The RT8572 is an 8-CH LED driver capable of delivering 60mA for each channel. The RT8572 is a current mode boost converter with an adjustable switching frequency via the RT pin from 100kHz to 1MHz and a wide VIN range from 9V to 28V. The PWM output voltage loop selects and regulates the LED pin with.

RT8572 Datasheet (181.99 KB)

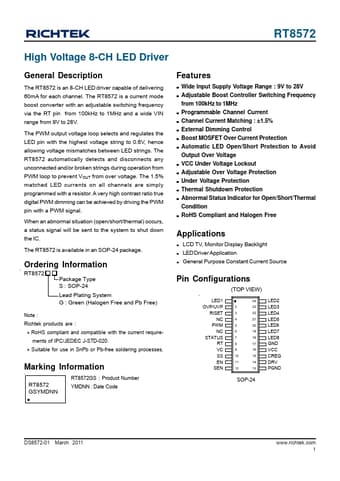

Preview of RT8572 PDF

Datasheet Details

Part number:

RT8572

Manufacturer:

Richtek

File Size:

181.99 KB

Description:

High voltage 8-ch led driver.
