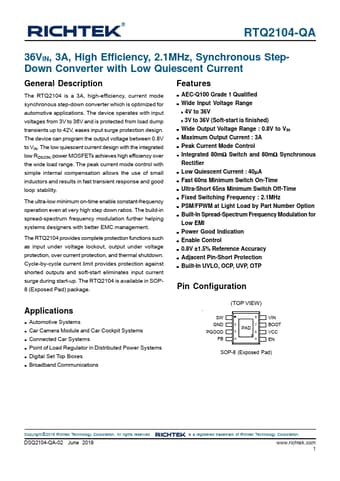

RTQ2104-QA Datasheet Preview — Preview of RTQ2104-QA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: RTQ2104-QA
Manufacturer: Richtek
File Size: 515.73 KB
Datasheet: RTQ2104-QA-Richtek.pdf
Description: Synchronous Step-Down Converter

RTQ2104-QA Product details

Description

The RTQ2104 is a 3A, high-efficiency, current mode synchronous step-down converter which is optimized for automotive applications.

Features

AEC-Q100 Grade 1 Qualified.
Wide Input Voltage Range  4V to 36V  3V to 36V (Soft-start is finished).
Wide Output Voltage Range : 0.8V to VIN.
Maximum Output Current : 3A.
Peak Current Mode Control.
Integrated 80mΩ Switch and 80mΩ Synchronous Rectifier.
Low Quiescent Current : 40μA.
Fast 60ns Minimum Switch On-Time.
Ultra-Short 65ns Minimum Switch Off-Time.
Fixed Switching Frequency : 2.1MHz.
PSM/FPWM at Light Load by Part Number Option.
