RTQ2130B-QT

2.1MHz Synchronous Small Form Factor StepDown Converter

RTQ2130B-QT Features

* AEC-Q100 Grade 1 Qualified

* Wide Input Voltage Range  4V to 36V  3V to 36V (soft-start is finished)

* Tight Switching Frequency Variation 2.1MHz ±10% Over Operating Ambient Temperature

* 5V Fixed Output Voltage (see Ordering Information for availability)

* Maximum Output Cur

RTQ2130B-QT General Description

The RTQ2130B is a 0.7A, high-efficiency, current mode synchronous step-down converter which is optimized for automotive applications. The device operates with input voltages from 3V to 36V and is protected from load dump transients up to 42V, eases input surge protection design. The device can progr.

RTQ2130B-QT Datasheet (404.93 KB)

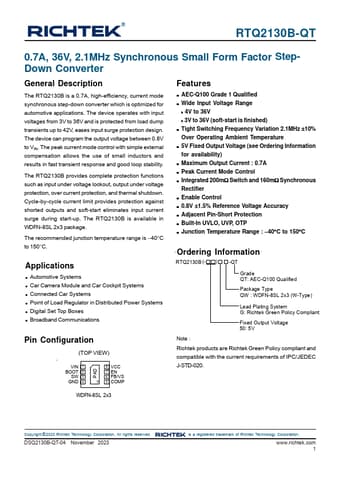

Preview of RTQ2130B-QT PDF

Datasheet Details

Part number:

RTQ2130B-QT

Manufacturer:

Richtek

File Size:

404.93 KB

Description:

2.1mhz synchronous small form factor stepdown converter.
