RTQ2131B-QA Datasheet, Converter, Richtek

RTQ2131B-QA Features

  • Converter
  • AEC-Q100 Grade 1 Qualified
  • Wide Input Voltage Range  4V to 36V  3V to 36V (soft-start is finished)
  • Tight Switching Frequency Variation 2.1MHz ±10% Over O

PDF File Details

Part number:

RTQ2131B-QA

Manufacturer:

Richtek

File Size:

447.20kb

Download:

📄 Datasheet

Description:

2.1mhz synchronous step-down converter. The RTQ2131B is a 1A, high-efficiency, current mode synchronous step-down converter which is optimized for automotive applications. T

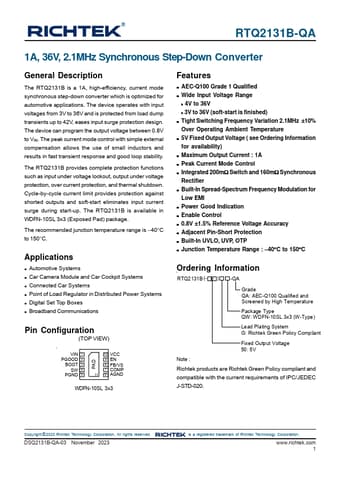

Datasheet Preview: RTQ2131B-QA 📥 Download PDF (447.20kb)
Page 2 of RTQ2131B-QA Page 3 of RTQ2131B-QA

RTQ2131B-QA Application

  • Applications The device operates with input voltages from 3V to 36V and is protected from load dump transients up to 42V, eases input surge protect
