2SB852K - High-gain Amplifier Transistor

Product Overview

Rohm

Part number	2SB852K
Manufacturer	ROHM
File Size	492.03 KB
Description	High-gain Amplifier Transistor
Datasheet	2SB852K Datasheet
Additional preview pages of the 2SB852K datasheet.

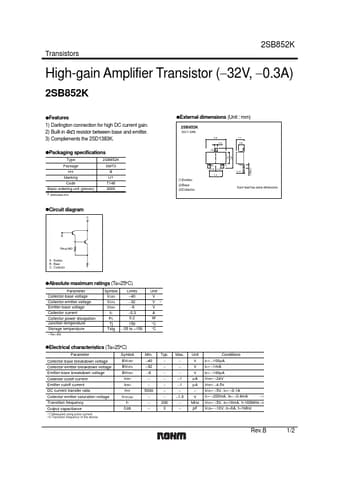

1) Darlington connection for high DC current gain. 2) Built-in 4kΩ resistor between base and emitter. 3) Complements the 2SD1383K. zPackaging specifications Type Package hFE Marking Code Basic ordering unit (pieces) ∗ Denotes hFE 2SB852K SMT3 B U∗ T146 3000 zCircuit diagram C zExternal dimensions (Unit : mm) 2SB852K SOT-346 2.9 0.4 (3) 1.1 0.8 1.6 2.8 0.3Min. (1)Emitter (2)Base (3)Collector (2) (1) 0.95 0.95 1.9 0.15 Each lead has same dimensions B RBE 4kΩ E : Emitter B : Base C :.
