A1515S

Medium Power Transistor

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor MORNSUN A1515S-2WR3 DC DC CONVERTER +/-15V 2W DigiKey 14 1 units
$1.85

A1515S Datasheet (142.03 KB)

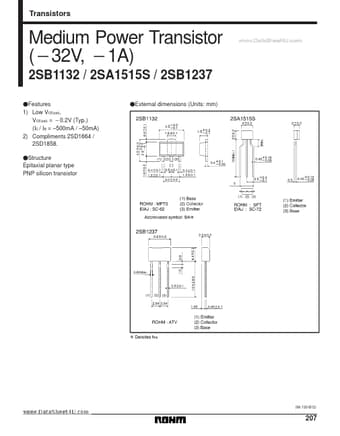

Preview of A1515S PDF

Datasheet Details

Part number:

A1515S

Manufacturer:

ROHM ↗

File Size:

142.03 KB

Description:

Medium power transistor.

A1515S Features

* 1) Low VCE(sat). VCE(sat) =

* 0.2V (Typ.) (IC / IB =

* 500mA /

* 50mA) 2) Compliments 2SD1664 / 2SD1858. FStructure Epitaxial planar type PNP silicon transistor FExternal dimensions (Units: mm) www.DataSheet4U.com (96-120-B12) 207 Transistors FAbsolute maximum ratings (Ta = 25_C
