A1515

2SA1515

A1515 Features

* Low Collector-Emitter Saturation Voltage

* Low Transition Frequency CLASSIFICATION OF hFE Product-Rank 2SA1515-P 2SA1515-Q 2SA1515-R Range 82~180 120~270 180~390 GH J AD B K E CF TO-92 Emitter Collector

* Base REF. A B C D E F G H J K Millimeter Min. Max. 4.40 4.70 4.30 4.

A1515 Datasheet (96.23 KB)

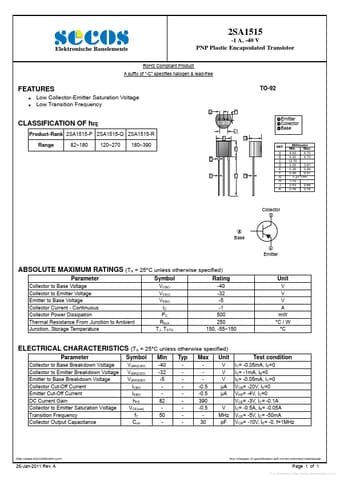

Preview of A1515 PDF

Datasheet Details

Part number:

A1515

Manufacturer:

SeCoS

File Size:

96.23 KB

Description:

2sa1515.
Elektronische Bauelemente 2SA1515 -1 A, -40 V PNP Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-f.
