BA5931FP

4-channel BTL driver for CD players

BA5931FP Features

* 1) Internal drivers for focus coils, tracking coils, spindle motors, feed motors and loading. 2) HSOP 28-pin package allows for miniaturization of applications. 3) Low number of external components. 4) Driver gain is adjustable with a single attached resistor. 5) Internal thermal shutdown circuit.

BA5931FP General Description

279 Optical disc ICs FInput / output circuits BA5931FP 280 Optical disc ICs FElectrical characteristics (unless otherwise noted, Ta = 25_C, VCC = 8V, RL = 8Ω, Vb = 2.5V) BA5931FP 281 Optical disc ICs FMeasurement circuit BA5931FP 282 Optical disc ICs FCircuit operation (1) Driver Inputs .

BA5931FP Datasheet (157.50 KB)

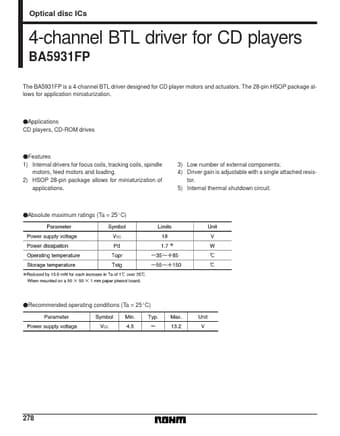

Preview of BA5931FP PDF

Datasheet Details

Part number:

BA5931FP

Manufacturer:

ROHM ↗

File Size:

157.50 KB

Description:

4-channel btl driver for cd players.
Optical disc ICs 4-channel BTL driver for CD players BA5931FP The BA5931FP is a 4-channel BTL driver designed for CD player motors and actuators. The.
