BA591

Band-switching diode

NXP

BA591 Features

* Very small plastic SMD package

* Low diode capacitance: max. 1.05 pF

* Low diode forward resistance: max. 0.7 Ω

* Small inductance. handbook, halfpage BA591 DESCRIPTION The BA591 is a planar, high performance band-switching diode in the very small SOD323 SMD plasti

BA591 General Description

The BA591 is a planar, high performance band-switching diode in the very small SOD323 SMD plastic package. PINNING PIN 1 2 DESCRIPTION cathode anode 1 2 APPLICATIONS

* Low loss band-switching in VHF television tuners

* Surface mount band-switching circuits. Marking code: A1. The m.

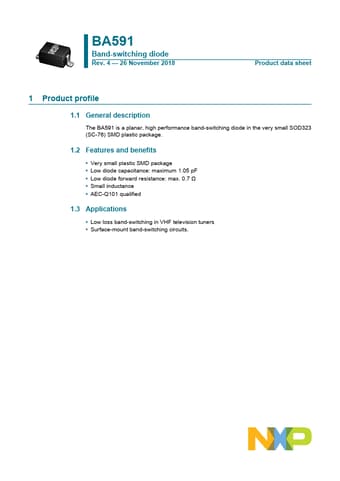

BA591 Datasheet (147.93 KB)

BA591 Datasheet Preview — Preview of BA591 PDF

Datasheet Details

Part number:

BA591

Manufacturer:

NXP ↗

File Size:

147.93 KB

Description:

Band-switching diode.
DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D049 BA591 Band-switching diode Product speciﬁcation Supersedes data of 1998 Aug 18 1998 Aug 31.
