BA592

Band-switching diode

NXP

BA592 Features

* Small plastic SMD package

* Low diode capacitance

* Low diode forward resistance

* Small inductance. APPLICATIONS

* Low loss band-switching in VHF television tuners

* Surface mount band-switching circuits. DESCRIPTION Planar, high performance band-sw

BA592 General Description

Planar, high performance band-switch diode in a small SMD plastic package (SOD323). PINNING SOD323 PIN 1 2 BA592 ndbook, halfpage 1 Top view Marking code: A2. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL VR IF Ptot Tstg Tj PARAMETER continuous reverse .

BA592 Datasheet (64.60 KB)

BA592 Datasheet Preview — Preview of BA592 PDF

Datasheet Details

Part number:

BA592

Manufacturer:

NXP ↗

File Size:

64.60 KB

Description:

Band-switching diode.

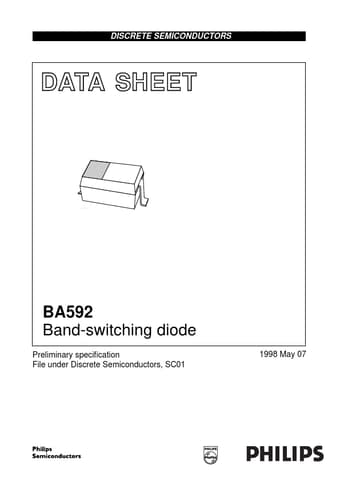

DISCRETE SEMICONDUCTORS DATA SHEET k, halfpage M3D049 BA592 Band-switching diode Preliminary speciﬁcation File under Discrete Semiconductors, SC01.
