BA5913FP-Y - 4-channel BTL driver

Product Overview

Rohm

Datasheet Details

Part number	BA5913FP-Y
Manufacturer	ROHM
File Size	142.93 KB
Description	4-channel BTL driver
Datasheet	BA5913FP-Y Datasheet
Additional preview pages of the BA5913FP-Y datasheet.

Product details

Description

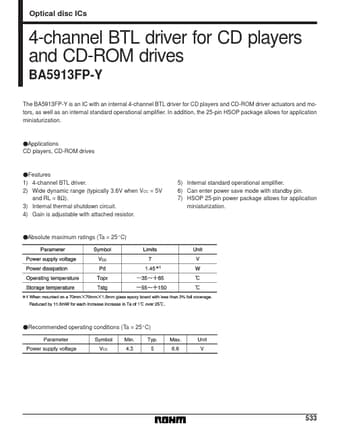

534 Optical disc ICs FInput / output circuit diagrams BA5913FP-Y 535 Optical disc ICs FElectrical characteristics (unless otherwise noted, Ta = 25_C, VCC = 5V, BIAS = 2.5V, RL = 8Ω) BA5913FP-Y 536 Optical disc ICs FMeasurement circuits BA5913FP-Y 537 Optical disc ICs BA5913FP-Y Measurement circuit switch table (1) Driver (OPIN ! 1, NF ! 1, OPRL ! 1, VOPIN = 2.5V) (2) Operational amplifier (RL ! OFF) 538 Optical disc ICs FApplication example BA5913FP-Y 539 Optical disc ICs FO

Features

1) 4-channel BTL driver. 2) Wide dynamic range (typically 3.6V when VCC = 5V and RL = 8Ω). 3) Internal thermal shutdown circuit. 4) Gain is adjustable with attached resistor. 5) Internal standard operational amplifier. 6) Can enter power save mode with standby pin. 7) HSOP 25-pin power package allows for.
