BA5915FP - 4-channel BTL driver

Product Overview

Rohm

Datasheet Details

Part number	BA5915FP
Manufacturer	ROHM
File Size	148.06 KB
Description	4-channel BTL driver
Datasheet	BA5915FP Datasheet

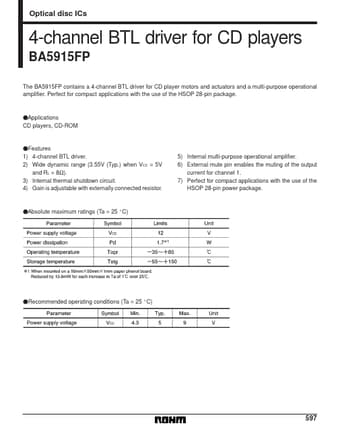

Additional preview pages of the BA5915FP datasheet.

Product details

Description

598 Optical disc ICs FInput / output circuits BA5915FP 599 Optical disc ICs FElectrical characteristics (unless otherwise noted, Ta = 25 _C, VCC = 5V, BIAS = 2.5V, RL = 8Ω) BA5915FP 600 Optical disc ICs FMeasurement circuits BA5915FP 601 Optical disc ICs BA5915FP Measurement circuit switch table (1) Driver block (OPIN ! 1, NF ! 1, OPRL ! 1, VOPIN = 2.5V) (2) Operational amplifier block (RL ! OFF) 602 Optical disc ICs FApplication example BA5915FP 603 Optical disc ICs FOperat

Features

1) 4-channel BTL driver. 2) Wide dynamic range (3.55V (Typ. ) when VCC = 5V and RL = 8Ω). 3) Internal thermal shutdown circuit. 4) Gain is adjustable with externally connected resistor. 5) Internal multi-purpose operational amplifier. 6) External mute pin enables the muting of the output current for channel 1. 7) Perfect for compact.
