BA6209N Datasheet - Rohm

BA6209N Reversible motor driver

390 Motor driver ICs www.DataSheet4U.com BA6209 / BA6209N FOperation notes (1) Resistor dividing IC power consumption To reduce power dissipated in the IC, a resistance (about 3X10Ω) must always be connected between VCC and the power supply pin of the driver circuit. If VCC2 is connected to VCC.

BA6209N Features

* 1) Power transistors can handle a large current (1.6A maximally). 2) Brake is applied when stopping the motor. 3) Built-in function to absorb rush currents generated by reversing and braking. 4) Motor speed controlling pin. FBlock diagram 5) Small standby current. (VCC = 12V, IO = 5.5mA typically)

BA6209N Datasheet (168.11 KB)

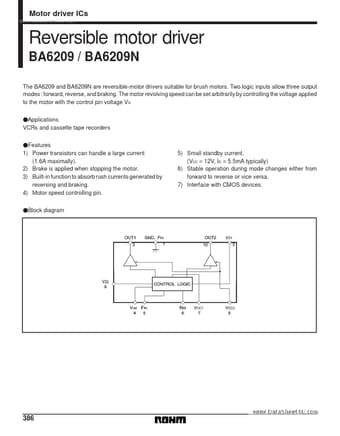

Preview of BA6209N PDF
BA6209N Datasheet Preview Page 2 BA6209N Datasheet Preview Page 3

Datasheet Details

Part number:

BA6209N

Manufacturer:

ROHM ↗

File Size:

168.11 KB

Description:

Reversible motor driver.
