BA6404F Datasheet, Predriver, Rohm

BA6404F Features

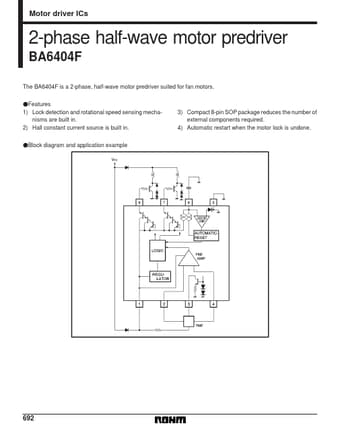

• Predriver 1) Lock detection and rotational speed sensing mechanisms are built in. 2) Hall constant current source is built in. FBlock diagram and application example 3) Compact 8-pin SOP package

PDF File Details

Part number:

BA6404F

Manufacturer:

ROHM ↗

File Size:

38.75kb

Download:

📄 Datasheet

Description:

2-phase half-wave motor predriver.
