BD8317GWL - Step-up and inverted 2-channel DC/DC converter

Rohm

📥 Download Datasheet

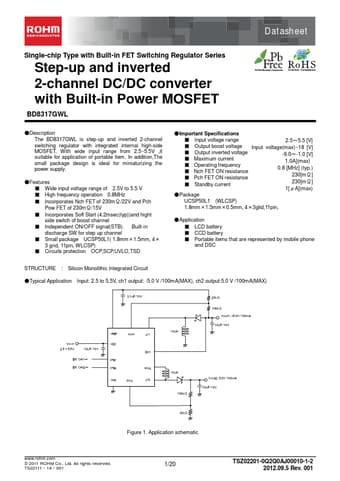

BD8317GWL Datasheet Preview — Preview of BD8317GWL PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BD8317GWL
Manufacturer: ROHM ↗
File Size: 1.22 MB
Datasheet: BD8317GWL-Rohm.pdf
Description: Step-up and inverted 2-channel DC/DC converter

BD8317GWL Product details

Description

The BD8317GWL is step-up and inverted 2-channel switching regulator with integrated internal high-side

Features

Wide input voltage range of 2.5V to 5.5 V.
High frequency operation 0.8MHz.
Incorporates Nch FET of 230mΩ/22V and Pch Pow FET of 230mΩ/15V.
Incorporates Soft Start (4.2msec(typ))and hight side switch of boost channel.
Independent ON/OFF signal(STB). Built-in discharge SW for step up channel.
Small package UCSP50L1( 1.8mm×1.5mm, 4× 3 grid, 11pin,.
