BH7881EFV, Stereo Speaker / Headphone Amplifier

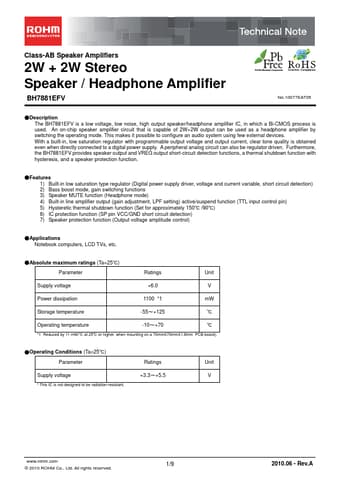

Class-AB Speaker Amplifiers 2W + 2W Stereo Speaker / Headphone Amplifier BH7881EFV No.10077EAT05 *.
The BH7881EFV is a low voltage, low noise, high output speaker/headphone amplifier IC, in which a Bi-CMOS process is used.

datasheet Preview Page 1 from Datasheet4u.com

BH7881EFV_Rohm.pdf

BH7881EFV Datasheet Preview — Preview of BH7881EFV PDF

Datasheet Details

Part number:

BH7881EFV

Manufacturer:

ROHM ↗

File Size:

419.13 KB

Description:

Stereo Speaker / Headphone Amplifier

Features

* 1) Built-in low saturation type regulator (Digital power supply driver, voltage and current variable, short circuit detection) 2) Bass boost mode, gain switching functions 3) Speaker MUTE function (Headphone mode) 4) Built-in line amplifier output (gain adjustment, LPF setting) active/suspend functi

Applications

* Notebook computers, LCD TVs, etc.
* Absolute maximum ratings (Ta=25℃) Parameter Ratings Unit Supply voltage +6.0 V Power dissipation 1100
* 1 mW Storage temperature -55～+125 ℃ Operating temperature -10～+70 ℃
* 1 Reduced by 11 mW/℃ at 25℃ or higher, when mounting on a 70mmX70
